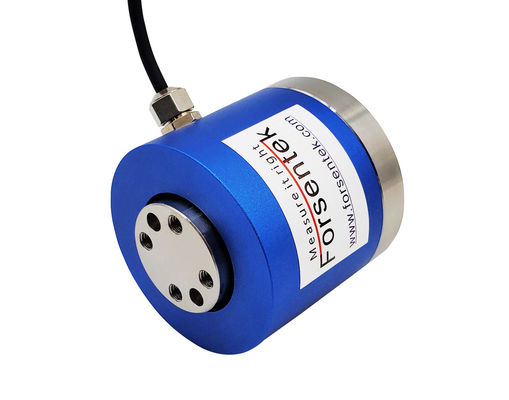

Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor

Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor

    • Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor
    • Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor
    • Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor
  • Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: F2E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-4 weeks
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Usage: Three-axis Force Measurement Type: Analog Sensor
    Principle: Strain Gauge Based Rating: 50kN 100kN 200kN

    Biaxial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor

    2-axis load cell F2E offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-300N / 0-500N / 0-1000N eight measuring ranges intended for two-dimensional force measurement in Fx/Fy directions.Each channel consists of a full wheatstone bridge to deliver mV/V output with 4-wire configuration.Both Fx and Fy direction supports tension and compression force measurement.Bi-axial force transducer F2E is normally used for forct test benches,actuator force control,force simulators and other applications involve two axis force measurement.2D sensor F2E can be modified or customized to meet requirements of different applications.

    biaxial_force_sensor_1kN_500N_300N_200N_100N_50N

    Dimensions

    bi_axial_force_transducer_1kN_500N_200N
    Ordering code

    Part No. Capacity
    Fx=Fy
    F2F-1kg 1kgf
    F2F-2kg 2kgf
    F2F-5kg 5kgf
    F2F-10kg 10kgf
    F2F-20kg 20kgf
    F2F-30kg 30kgf
    F2F-50kg 50kgf
    F2F-10kg 100kgf

    Specifications

    Rated Capacity

    1kg 2kg 5kg 10kg 20kg 30kg 50kg 100kg

    10N 20N 50N 100N 200N 300N 500N 1000N

    Rated output 1.0mV/V
    Excitation 3-15V
    Zero balance ±0.1mV/V
    Non-linearity ±0.3% R.O.
    Hysteresis ±0.3% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift on zero ±0.03% R.O./oC
    Temperature shift on span ±0.02% R.O./oC
    Input resistance 380±30 ohms
    Output resistance 380±30 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Stainless steel
    Cable Ø3*3000mm 8-core shielded cable
    Wiring code

    Fx @ Red--E+ Black--E- Green--S+ White--S-

    Fy @ Brown--E+ Yellow--E- Blue--S+ Gray--S-


    Bi-axial load cell 1kN 500N 200N 100N 50N 20N 10N 2-axis force sensor
    2-axis_load_cell_1kN_500N_300N_200N_100N_50N

    Click here to download datasheet
