| Type: | Small Button Load Cell | Capacity: | 0-5kN(Selectable) |
|---|---|---|---|
| Output: | Analog Sensor | Diameter: | 20mm |
| Force Direction: | Compression |

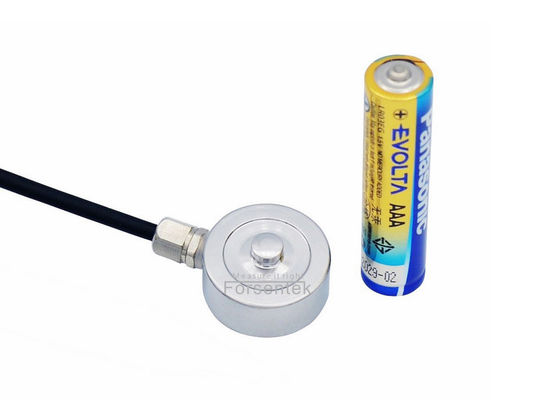

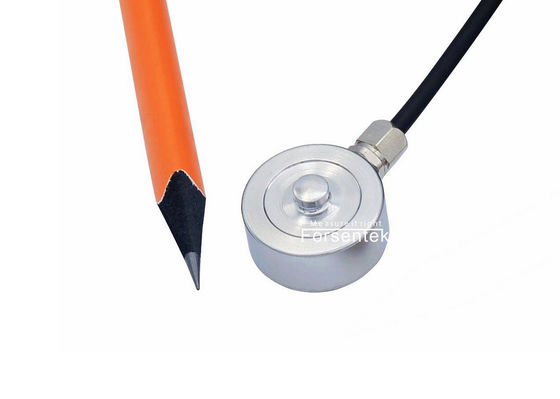

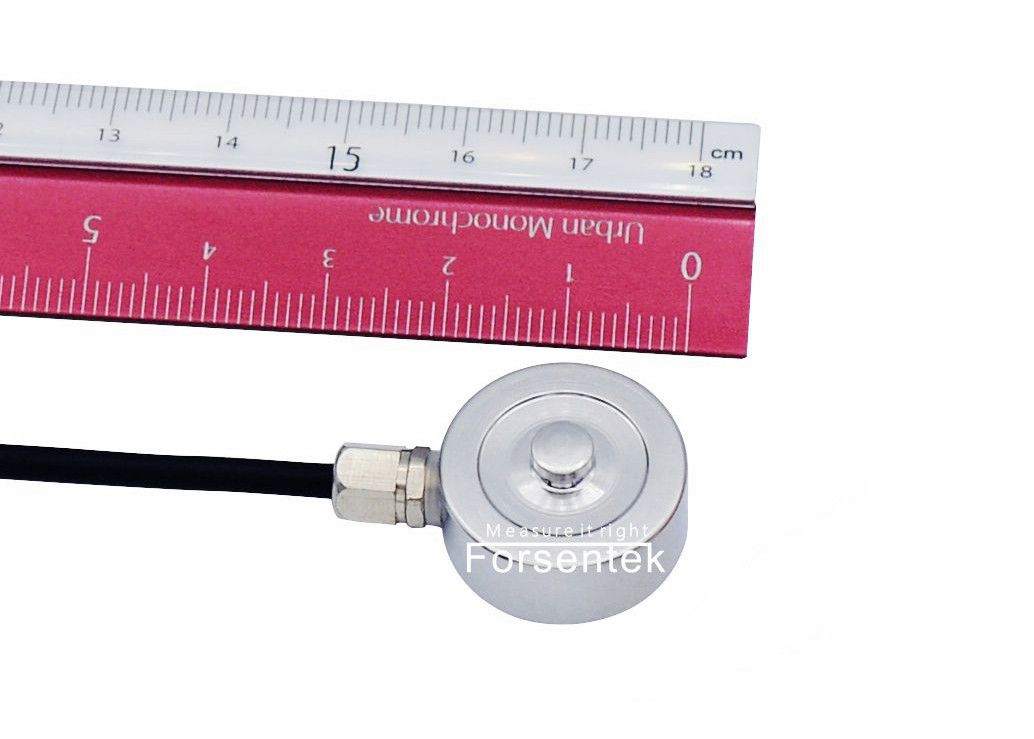

Small size button tye compression load cell force sensor 5kN 2kN 1kN 500N 200N 100N
Miniature compression load cell FCLB is made of stainless steel based on strain gauge technology which offers 50N / 100N / 200N / 500N / 1kN / 2kN / 5kN seven rated capacities to choose from,compact design makes small load cell FCLB suitable for compression force measurement applications with limited mounting space. Each sensor comes with a 4-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom make it easy to mount force sensor FCLB to a flat platform,you may find force transducer FCLB suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring, hydraulics force control and so on.

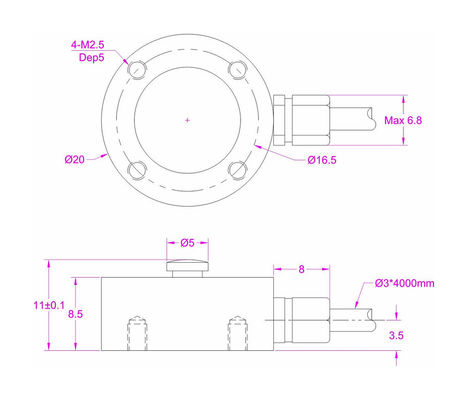

Dimensions(unit in "mm")
Specifications
| Rated capacity |
500kg / 5kN / 1120 lbf 200kg / 2kN / 450 lbf 100kg / 1kN / 225lbf 50kg / 500N / 112 lbf 20kg / 200N / 45lbf 10kg / 100N / 22.5 lbf 5kg / 50N / 11.2 lbf |
| Rated output | 1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Non-linearity | ±0.5% of R.O. |
| Hysteresis | ±0.5% of R.O. |
| Non-repeatability | ±0.2% of R.O. |
| Creep(5min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift on zero | ±0.05% R.O./oC |
| Temp. shift on span | ±0.05% R.O./oC |
| Input resistance | >700 ohms |
| Output resistance | >700 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*300mm 4-core shieded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A button load cell is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load or force being applied.The measured load or force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Button type load cell FCLB outputs millivolt signal ranging 0-15mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get 0-5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
