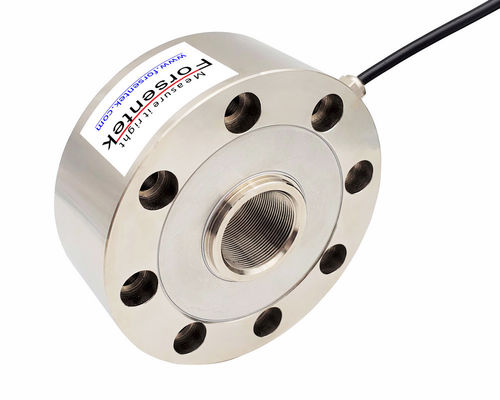

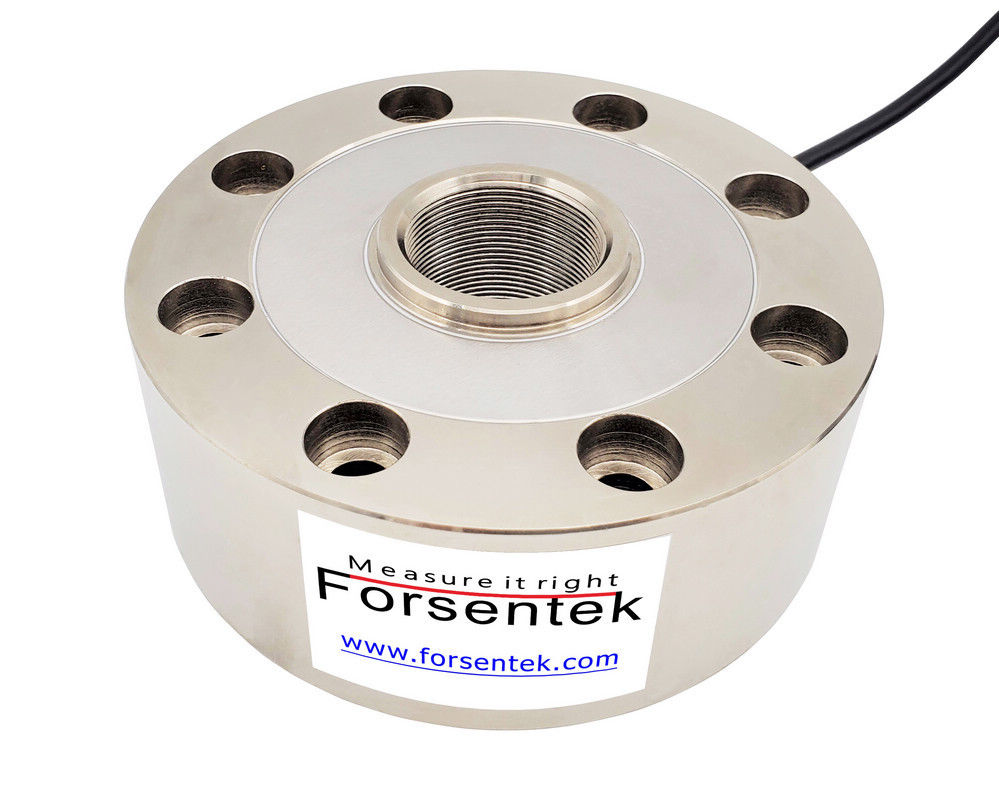

M40 threaded compression load sensor 30 ton 50 ton pancake load cell

M40 threaded compression load sensor 30 ton 50 ton pancake load cell

    • M40 threaded compression load sensor 30 ton 50 ton pancake load cell
    • M40 threaded compression load sensor 30 ton 50 ton pancake load cell
    • M40 threaded compression load sensor 30 ton 50 ton pancake load cell
  • M40 threaded compression load sensor 30 ton 50 ton pancake load cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FCM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Capacity: 5/10/20/30/50/70/100/200/250/300/500/600/1000KN
    Output: Analog Output Principle: Strain Gauge Load Cell

    M40 threaded compression load cell 50ton 30 ton 20ton 10 ton 5ton 2 ton 1ton

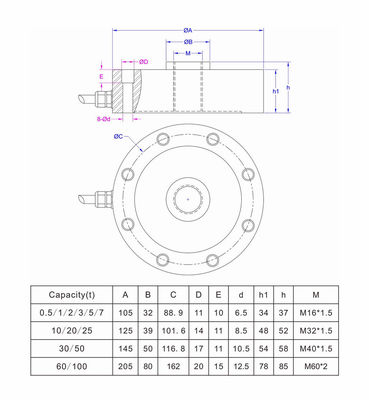

    M40 threaded compression force transducer FCM is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force. Pancake load cell FCM offers 0.5ton / 1ton / 2 ton / 3ton / 5 ton / 7ton / 10 ton / 20 ton / 25 ton / 30 ton / 50ton / 60 ton / 100 ton thirteen rated capacities to choose from. Load sensor FCM is suitable for both static and dynamic force measurement in tension and compression direction.Low profile structure makes it also suitable for in-line force monitoring.Pancake loadcell FCM is designed with a metric threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find spoke type load cell FCM applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.



    M40 threaded compression load sensor 30 ton 50 ton pancake load cell

    Rated capacity

    0.5t / 5kN / 1.1 klb

    1t / 10kN / 2.2klb

    2t / 20kN/ 4.4k lb

    3t /  30kN/ 6.6 klb

    5t / 50kN/ 11klb

    7t / 70kN/ 15 klb

    10t/ 100kN/ 22 klb

    20t/ 200kN/ 44klb

    25t/ 250kN/ 55k lbf

    30t/ 300kN/ 66k lb

    50t/ 500kN/ 110k lbf

    60t/ 600kN/ 132k lb

    100t/ 1000kN/ 220k lbf

    Rated output  2.0±10%mV/V
    Excitation  3-15V
    Zero balance  ±2% of R.O.
    Nonlinearity  ±0.05% of R.O.
    Hysteresis  ±0.05% of R.O.
    Nonrepeatability  ±0.03% of R.O.
    Creep(30min)  ±0.03% of R.O.
    Safe overload  150% of F.S.
    Ultimate overload  200% of F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.05% R.O./10oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  385±30 ohms
    Output resistance  350±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP66
    Material of element  Alloy steel
    Cable Ø5*3000mm
    Wiring code

    Red--Exc+   Black--Exc-
    Green--Sig+ White--Sig-

    Brief instruction of Rated output(or Sensitivity):
    Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
    Sensor output = (Power supply * Rated output) * Load / Capacity
    Rated output is normally within 1mV/V~3mV/V.
    Power supply is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
    Example one: 2.0mV/V pancake load cell with 10V power supply,the output range is 0~20mV (-20mV...+20mV for bidirectional sensor).
    Example two: 1.0mV/V compression load cell with 5V power supply,the output range is 0~5mV (-5mV...+5mV for bidirectional sensor).

    A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Pancake load cell FCM outputs millivolt signal ranging 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
    compression_load_cell_50 ton_30ton_20ton

    Click here to download datasheet
