| Material: | Alloy Steel | Capacity: | 0-10000kgf*m |
|---|---|---|---|
| Type: | Reaction Type Torque Sensor | Principle: | Strain Gauge Torque Sensor |
| Mounting: | Flange To Flange |
Flange Type Reaction Torque Transducer 2000kgf*m 3000kg*m 5000 kgf-m 10000kg*m

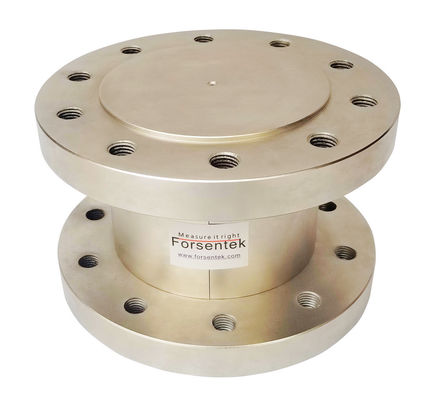

Flange Mounted Reaction Torque Sensor FT03 is made of high stiffness alloy steel based on strain gauge technology, flange style torque transducer FT03 delivers mV/V signal from wheatstone bridge bonded on a specially machined body.Flange to flange design makes it easy to mount FT03 to existing strutures.Torque meter FT03 is available in a very wide measuring range from 200NM up to 100kNm,you may find FT03 suitable for applications such as motor torque measurement, test bench applications, screw driver calibration, fatigue testing, twist measurement, motor dynamometers, actuator test as so on. Reaction Torquemeter FT03 can be modified or customized to meet requirements of different applications.
Dimensions
Specifications
| Capacity |
200Nm / 147 lbf*ft / 20 kg*m 300N*m / 221 lb*ft / 30kgf*m 500N-m / 368 lb-ft / 50kg-m 1000Nm / 737 lbf-ft / 100 kgf*m 2000N-m / 1475 lbf*ft / 200kg*m 3000Nm / 2212lbf*ft / 300 kgf*m 10kNm / 7.4k lbf*ft / 1000kg*m 20kNm / 14.7klb*ft / 2000kgf-m 30k N*m / 22k lbf*ft / 3000 kg*m 40kNm / 29.5klb-ft / 4000 kgf*m 60kNm / 44klb-ft / 6000kg*m 70kN*m / 51.6k lbf*ft / 7000 kgf*m 80kNm / 59k lb*ft / 8000 kg*m 100kNm / 73.7 klb-ft / 10000kgf*m |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | 200NM~10kNM: ±0.25% R.O. 20k~10kNM: ±0.5% R.O. |
| Hysteresis |
200NM~10kNM: ±0.25% R.O. 20k~10kNM: ±0.5% R.O. |
| Nonrepeatability |
200NM~10kNM: ±0.1% R.O. 20k~10kNM: ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable |
Ø5*3000mm 4-core shielded cable (Mating connector included) |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |
A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FT03 is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.
