Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg

Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg

    • Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg
    • Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg
    • Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg
    • Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg
  • Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FFG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2210pcs/month
    Contact Now
    Detailed Product Description
    Type: Analog Sensor Capacity: 200kg 100kg 50kg 20kg 10kg 5kg 2kg
    Structure: Column Type Loadcell Mounting: Flange-to-flange

    Flange Type Miniature Tension Compression Load Cell 50kg 20kg 10kg 5kg 2kg

    Flange-to-Flange Miniature Tension And Compression Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated capacity.Miniature tension load cell FFG offers 2kgf / 5kgf / 10kgf / 20kgf / 50kgf / 100kgf / 200kgf seven rated capacities to choose from. Miniature Force Transducer FFG is suitable for both tension and compression force measurement. Stainless steel construction, flange-to-flange mounting, compact size, bidirectional force measurement, high accuracy, miniature tension force sensor FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

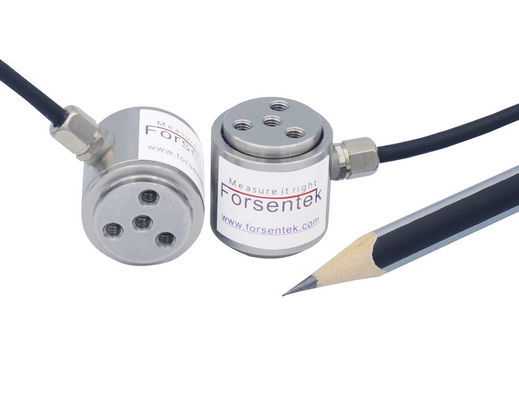

    tension compression load cell 50kgtension compression load cell 20kg

    Specifications

    Rated capacity 20N / 50N / 100N / 200N / 500N / 1kN / 2kN
    2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg
    4.5lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf
    Rated output 2.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.1% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.1% R.O. Input resistance 380±30 ohms
    Nonrepeatability ±0.05% R.O. Output resistance 350±5 ohms
    Creep(5min) ±0.05% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP62
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø3*3000mm 4-core shielded cable
    Wiring code

    Red--Power input+ Black--Power input-

    Green--Signal output+ White--Signal output-

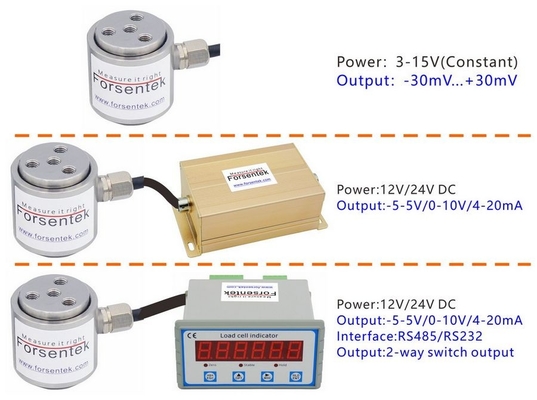

    Output signal of load cell and amplifier:
    Load cell output: = (Power supply * Rated output) * Load / Capacity
    Rated output of Flanged Force Transducer FFG is normally around 2.0mV/V.
    Power supply of Flange Type Force Sensor FFG is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the output range of Traction/Compression Force Sensor FFG is normally within -30mV…+30mV.
    Example one: Tensile Compressive Force Transducer FFG-50N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
    Example two: Tension And Compression Load Cell FFG-20N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.

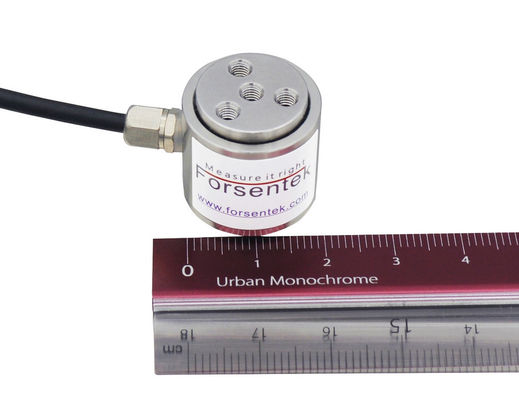

    tension compression load cell 2kgtension compression load cell 10kg

    The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
    Example one: Flange Type Tension Compression Sensor FFG-100N working with amplifier FSC(-10-10V)-24V,the Load-Voltage relationship will be 0-100N compression force VS 0-10V output, 0-100N tensile force VS 0-(-10V) output, which is linear regardless of the measurement error, 1V output corresponds to 10N compressive load, (-2V) output corresponds to 20N tension load, and so on.
    Example two: Cylindrical Tension and Compression Load Cell FFG-1kN working with amplifier FSC(4-12-20mA)-24V,the Force-Current relationship will be 0-1kN compression force VS 12-20mA output, 0-1kN tension force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 100N compressive load, 8mA output corresponds to 500N tensile load, and so on.

    Load cell + Digital indicator
    Digital indicator can work directly with load cell without signal amplifier,here are some functions from the indicator:
    -Display force value in real time
    -Peak holding to grab the maximum force during testing
    -RS485 or RS232 interface
    -0-5V/0-10V/4-20mA analog output
    -Switch output

    Dimensions

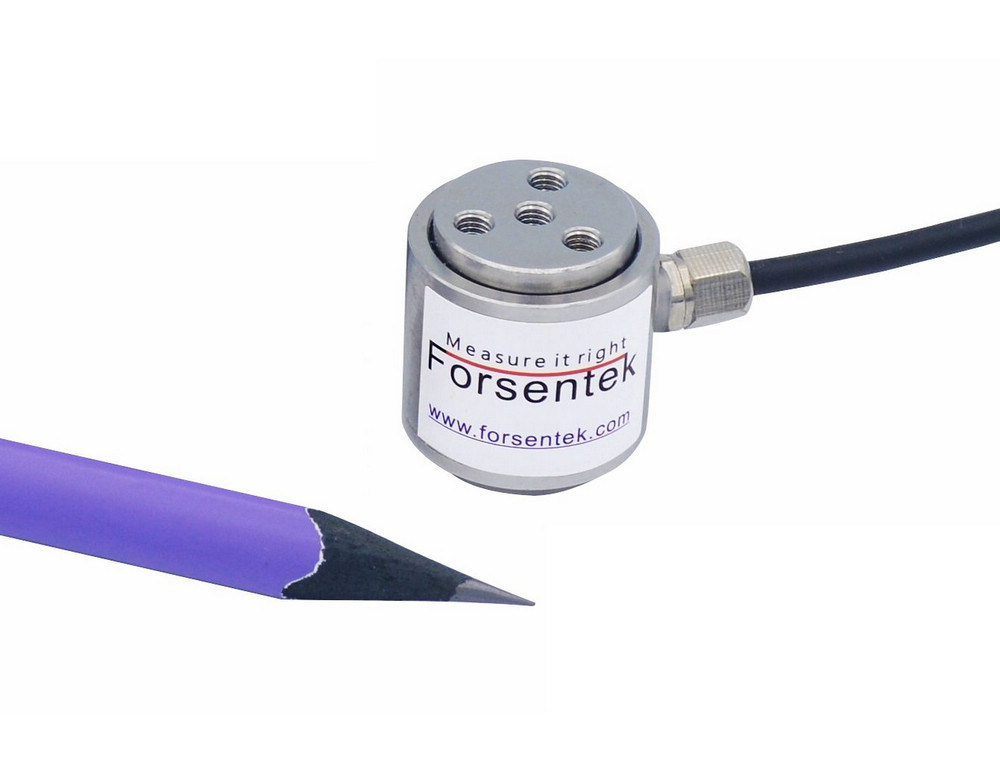

    Tension And Compression Load Cell 20lbtension compression load cell 10lb

    Ordering code Measurement Range Force direction
    FFG-20N 0-20N / 0-2kgf Tension/compression
    FFG-50N 0-50N / 0-5kgf
    FFG-100N 0-100N / 0-10kgf
    FFG-200N 0-200N / 0-20kgf
    FFG-500N 0-500N / 0-50kgf
    FFG-1kN 0-1000N / 0-100kgf
    FFG-2kN 0-2000N / 0-200kgf

    Click here to download datasheet
