| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FSKE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Quote by email |
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3540pcs/month |
| Type: | Miniature S Beam Load Cell | Capacity: | 0-2kN(Selectable) |
|---|---|---|---|
| Output: | Analog Sensor | Load Direction: | Push/Pull |
| Connection: | M8 Threaded Hole |

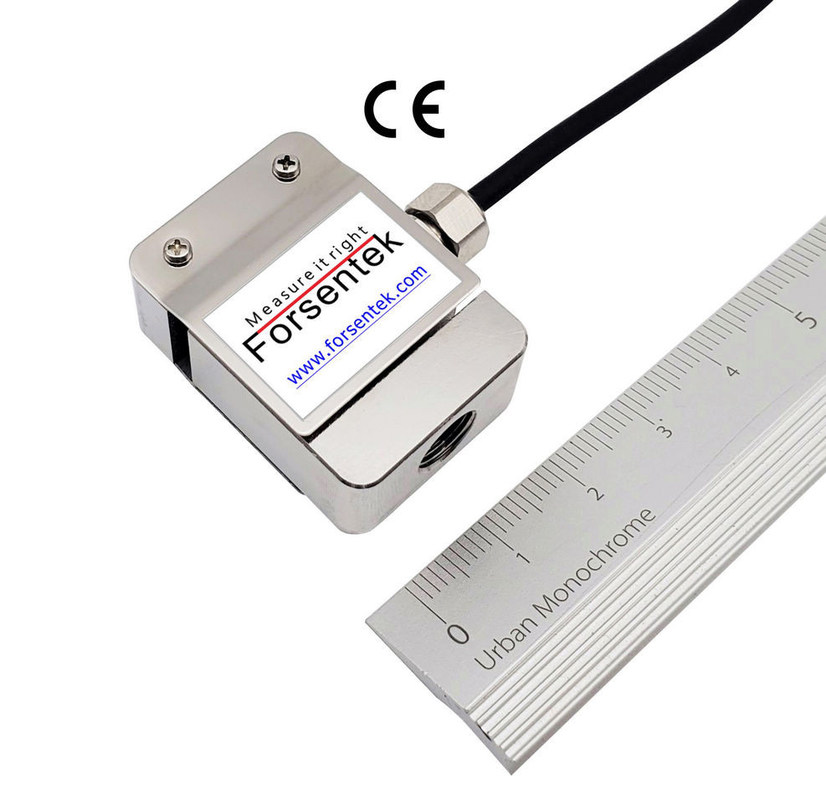

Miniature S-beam Force Transducer with M8 Threaded Hole Push Pull Load Cell Sensor
Miniature S Type Load Cell FSKE is made of stainless steel based on metal foil strain gauge technology. Compression and tension load cell FSKE offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N / 0-2000N six rated measuring ranges to choose from,high accuracy with maximum 0.1% nonlinearity of the full capacity. M8 threaded holes located on both ends can be used to mount attachments like load buttons, eye bolts, hooks to fit different applications. Compact design makes Push Pull Force Transducer FSKE a perfect option for tension compression force measurement applications with limited space.Typical applications for push pull load cell FSKE are such as auto process control, material testing machines, tension meters, hand press force measurement, assembly line,etc..Push Pull Loadcell FSKE can also be modified or customized as per request of our clients.
Specifications
| Rated capacity |
50N / 5kg / 11lb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 350±5 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded | ||
| Wiring code |
Compression@ |
||
The output range of S type load cell FSKE is normally within -30mV...+30mV,
Example: S-Beam Force Transducer FSKE-500N with 2.0mV/V rated output powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: S Beam Load Cell FSKE-2kN working with amplifier FSC(-10-10V)-24V,the force-voltage relationship will be 0-2000N compression force VS 0-10V output, 0-2000N tension force VS 0-(-10V) output.
