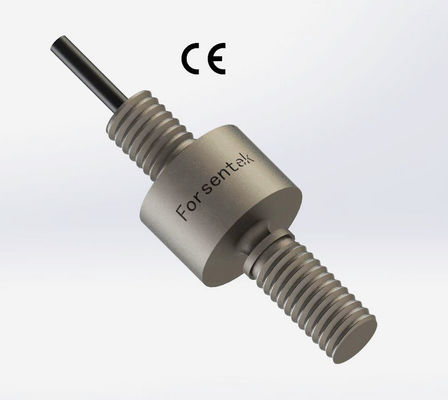

M6/M8 Threaded In-line Load cell 500kg 300kg 100kg 50kg 20kg 10kg 5kg
Cylindrical Inline Type Tension Compression Load Cell FL3F is made of stainless steel based on strain gauge technology intended for both pull and push force measurement. Inline Load Cell FL3F offers 0-5kg / 0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-300kg / 0-500kg seven rated measuring ranges with mV/V output from the full wheatstone bridge. Compact design makes for rod end load cell FL3F especially suitable for force measurement applications where mounting space is limited. M6/M8 threaded rod located on each side enables force transducer FL3F to replace the existing structure and be easily embedded into mechanical shaft, the M6/M8 male thread can also be used to mount attachments such as eye bolts, bolt adapters,etc.,for different applications. Custom made service is also available as per client's request.
5kg / 50N / 11lb
10kg / 100N / 22lb
20kg / 200N / 44lb
50kg / 500N / 110lb
100kg / 1kN / 220lb
300kg / 3kN / 660lb
500kg / 5kN / 1100lb
|Rated output||1.0 mV/V||Compensated temperature||-10...+40oC|
|Zero balance||±0.1mV/V||Temperature shift zero||±0.05% R.O./oC|
|Nonlinearity||±1% R.O.||Temperature shift span||±0.05% R.O./oC|
|Hysteresis||±1% R.O.||Input resistance||1000±100 ohms|
|Nonrepeatability||±0.5% R.O.||Output resistance||1000±100 ohms|
|Creep(3min)||±0.3% R.O.||Insulation resistance||>5000Mohms|
|Safe overload||150% F.S.||Ingress protection||IP66|
|Ultimate overload||200% F.S.||Material of element||Stainless steel|
|Cable||Ø2*4000mm 4-core shielded cable|
Red--Power input+ Black--Power input-
Green--Signal output+ White--Signal output-
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of force sensor FL3F is around 1mV/V.
Power supply is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of FL3F is normally within -10mV...+10mV for both tension and compression force measurement.
Example one: Push Pull Load Cell FL3F-50kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.
Example two: Inline Load Cell FL3F-20kg with 1.0mV/V rated output powered by 3.3V DC,the output range is -3.3mV...+3.3mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Tension Compression Load Cell FL3F-300kg working with amplifier FSC(-10-10V)-24V,the load-voltage relationship will be 0-300kg compression load VS 0-10V output, 0-300kg tension load VS 0-(-10V) output.
M6/M8 Threaded In-line Load cell 5kN 3kN 1kN 500N 200N 100N 50N
