Triaxial Load Cell 200kN 100kN 50kN Multi-axis Loadcell 5 ton 10ton 20te

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Certification:	CE
Model Number:	F3K

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	4-6 weeks
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1530pcs/month

Contact Now

Detailed Product Description

Usage:	Multi Axis Force Measurement	Type:	3-axis Force Sensor
Load Direction:	Fx Fy Fz	Range:	50kN/100kN/200kN

Triaxial Load Cell 200kN 100kN 50kN Multi-axis Loadcell 5 ton 10ton 20te

Low Profile 3-Axis Loadcell F3K is made of alloy steel based on strain gauge technology intended for 3-axis force measurement in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction. Low profile 3-Axis Force Sensor F3K offers 0-50kN / 0-100kN / 0-200kN (0-11.2klbf / 0-22.5klbf / 0-45klbf) three rated measuring ranges to choose from.High range 3 axis load cell F3K utilizes strain gauge technology, each axis consists of a full wheatstone bridge to deliver mV/V output proportional to the force being applied, a 3-channel load cell amplifier LC3A can be used to convert mV signal into ±5V, ±10V, 0-5V, 0-10V or 4-20mA for easy signal processing.Typical applications for multi axis force transducer F3K are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement and so on. 3D Transducer F3K can also be modified or customized as per request of our clients.

triaxial force transducer 50kN 100kN 200kN

Specifications

Rated capacity	50kN / / 5 ton / 11.2klb 100kN / 10 ton / 22.5klb 200kN / 20 ton / 45klbf
Rated outpu	1.0 mV/V	Compensated temperature	0...+40^oC
Excitation	3-15V	Operating temperature	-10...+60^oC
Zero balance	±0.05mV/V	Temperature shift zero	±0.03% R.O./^oC
Nonlinearity	±0.3% R.O.	Temperature shift span	±0.02% R.O./^oC
Hysteresis	±0.3% R.O.	Input resistance	700±100 ohms
Nonrepeatability	±0.1% R.O.	Output resistance	700±100 ohms
Creep(5min)	±0.05% R.O.	Insulation resistance	>2000Mohms
Safe overload	150% F.S.	Ingress protection	IP65
Ultimate overload	200% F.S.	Material of element	Alloy steel
Cable	Ø6*3000mm 12-core shielded cable
Wiring	4-wire connection for each axis

Triaxial Force Sensor 200kN 100kN 50kN Multi-axis Load Cell 5 ton 10ton 20te

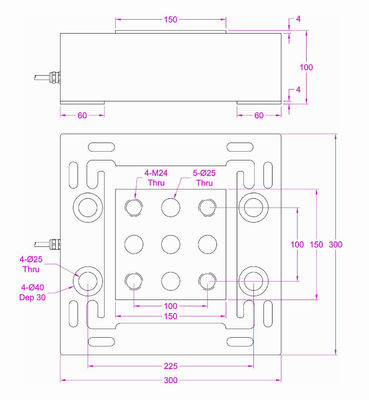

3 axis force transducer 50kN 100kN 200kN

Click here to download datasheet
