|Place of Origin:||China|
|Minimum Order Quantity:||3pcs|
|Packaging Details:||Shockproof carton|
|Delivery Time:||3-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram,Paypal|
|Usage:||Compression Force Measurement||Capacity:||22lb 65 Lb 112lb 225 Lb|
|Output:||Analog Transducer||Type:||Thin Load Cell|

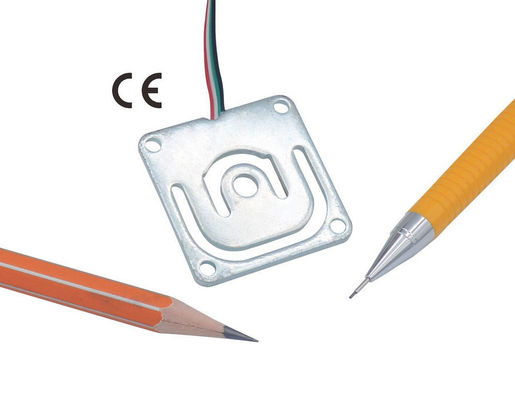

Low Profile Load Cell 200 lb Thin Weight Sensor 100lb Compression Force Transducer
Low Profile Force sensor FMXD utilizes strain gauge technology which are bonded on to the alloy steel sensing body. Miniature Weight Transducer FMXD is available in 0-22 lb / 0-67 lb / 0~112 lb / 0~225 lb four measuring ranges with maximum 0.1% F.S. non-linearity, it offers an accurate & low cost measurement solution for high volume applications.The 5.1mm thru hole located in the center of load cell can be used to mounting attachments to adapt to different applications. With its compact design, low profile force sensor FMXD is suitable for applications where vertical space is limited,it is ideal for use in robotics,process control and automotive applications,etc..Custom made service is available for other measuring ranges with similar structure.
100N / 10kg / 22 lb
300N / 30kg / 67lb
500N / 50kg / 112lb
1000N / 100kg / 225 lb
|Rated output||1.0/2.0 mV/V||Compensated temperature||0...+40oC|
|Zero balance||±0.3mV/V||Temperature shift zero||±0.03% R.O./oC|
|Nonlinearity||±0.1% R.O.||Temperature shift span||±0.03% R.O./oC|
|Hysteresis||±0.1% R.O.||Input resistance||1000±100 ohms|
|Nonrepeatability||±0.05% R.O.||Output resistance||1000±100 ohms|
|Creep(3min)||±0.1% R.O.||Insulation resistance||>2000Mohms|
|Safe overload||120% F.S.||Ingress protection||IP62|
|Ultimate overload||150% F.S.||Material of element||Alloy steel|
Red--Power input+ Black--Power input-
Green--Signal output+ White--Signal output-
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.A Wheatstone bridge is a network of four resistive legs. One or more of these legs can be active sensing elements. The Wheatstone bridge is the electrical equivalent of two parallel voltage divider circuits. R1 and R2 compose one voltage divider circuit, and R4 and R3 compose the second voltage divider circuit. The output of a Wheatstone bridge is measured between the middle nodes of the two voltage dividers,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force/weight can be measured by measuring the output signal from the wheatstone bridge.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of thin load cell FMXD is normally within 1mV/V~2mV/V.
Power supply of low profile weight sensor FMXD is within 3-12V.
Load / Capacity is within 0-1.
So the output range of weight transducer FMXD is normally within 0-24mV(-24mV...+24mV for tension compression force measurement).
Example one: FMXD-300N with 2.0mV/V sensitivity powered by 5V DC,the output range is 0~10mV.
Example two: FMXD-1kN with 2.0mV/V sensitivity powered by 10V DC,the output range is 0~20mV.
