    Low Profile Weight Transducer 30kg Weight Measurement Sensor 50lb

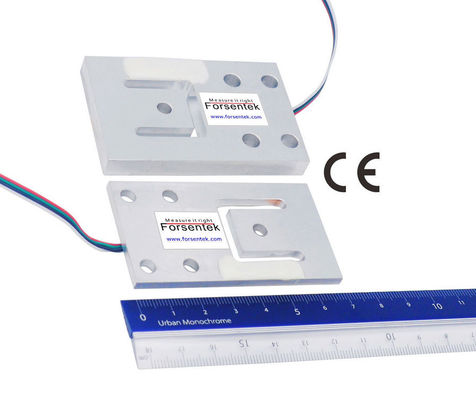

    Low Profile Compression Load Cell Force Sensor FHA is produced based on strain gauge technology with CE certified. Low profile load cell FHA offers 66lb / 165 lb / 330lb / 660 lb four rated capacities to choose form, high accuracy with 0.05% non-linearity of the full scale. Thin load cell FHA utilizes 1000ohms gauges which has better performance compared to commonly used 350ohms gauges in terms of power consumption and long term stability. Compact design enables the construction of scales with an extremely low overall height, affordable load cell FHA is also suitable for battery powered weighing devices.

    50 lb low profile weight transducer 30kglow profile weight measurement sensor 30kg

    Specifications

    Rated capacity

    30kg / 300N / 66 lb

    75kg / 750N / 165 lb

    150kg / 1500N / 330 lb

    300kg / 3000N / 660 lb

    Rated output 1.5/2.0 mV/V Compensated temperature 0...+25oC
    Excitation 3-10V Operating temperature -10...+40oC
    Zero balance ±0.1mV/V Temperature shift zero ±0.2% R.O./oC
    Nonlinearity ±0.05% R.O. Temperature shift span ±0.05% R.O./10oC
    Hysteresis ±0.05% R.O. Input resistance 1120±50 ohms
    Nonrepeatability ±0.05% R.O. Output resistance 1000±10 ohms
    Creep(3min) ±0.05% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP65
    Ultimate overload 200% F.S. Material of element Aluminum alloy
    Cable 30kg/75kg — 32AWG 400mm 4-wire
    150kg/300kg — 32AWG 150mm 4-wire
    Wiring code

    Red--Excitation+ Black--Excitation-

    Green--Signal+ White--Signal-



    A load cell is a transducer that converts mechanical load into mV signal proportional to the applied load/force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load can be measured by measuring the output signal from the transducer which is normally within -30mV...+30mV.

    Brief instruction of Rated output(or Sensitivity):
    Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of the sensor.
    Sensor output = (Power supply * Rated output) * Load / Capacity
    Rated output of thin load cell FHA is normally within 1.5mV/V~2.0mV/V.
    Power supply of compact weight sensor FHA is within 3-10V.
    Load / Capacity is within 0-1.
    So the output range of weight sensor FHA is normally within 0-20mV.
    Example one: Low profile weight transducer FHA-150kg with 2.0mV/V rated output powered by 5V DC ,the output range is 0~10mV.
    Example two: Thin weighing sensor FHA-300kg with 2.0mV/V rated output powered by 10V DC ,the output range is 0~20mV.

    Low Profile Weight Sensor 30kg Weight Measurement Transducer 50lb

    50lb low profile weight sensor 30kg

    Click here to download datasheet
