| Type: | Multi-axis Force Sensor | Usage: | 3 Axis Force Measurement |
|---|---|---|---|
| Output: | Analog Transducer | Load Direction: | Fx/Fy/Fz |
| Force Range: | 45lb 110lb 220lb 450lb 1100lb |
Multi-axis Load Cell 1000lb 500lb 300 lbs 200lb 100lb Multi Axis Force Sensor

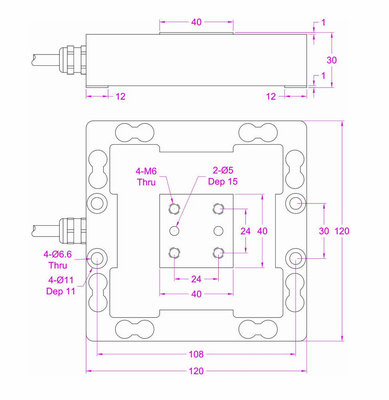

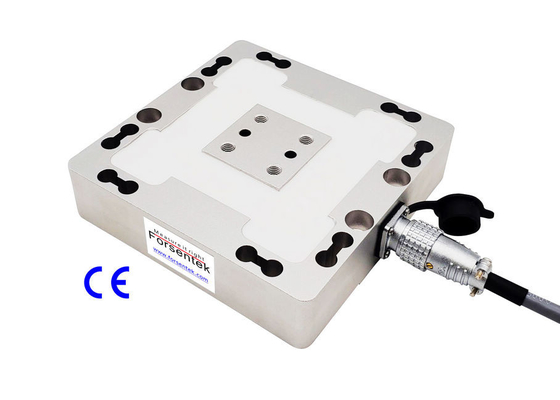

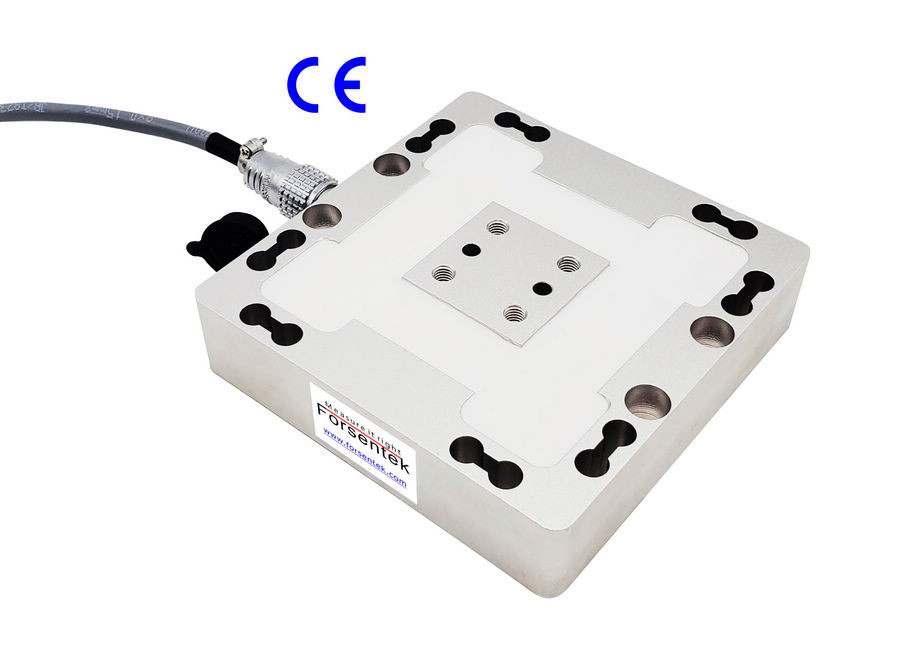

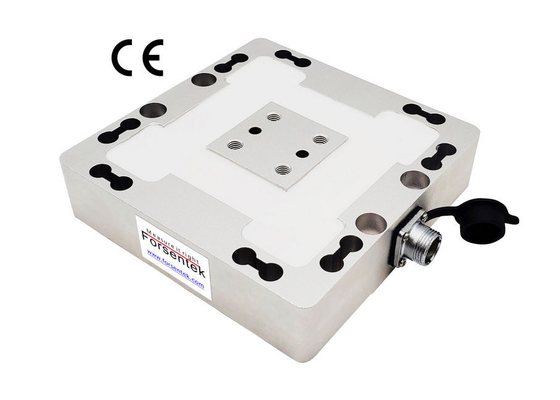

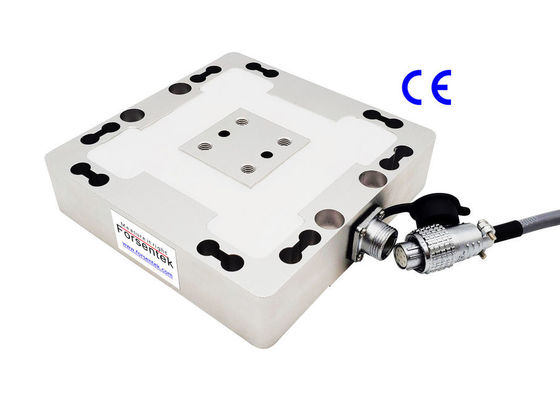

Low Profile 3 axis Force Sensor F3F is designed to measure force in Fx/Fy/Fz at the same time. Multi-axis Load Cell F3F offers 45lb / 67lb / 112lb / 225lb / 450lb / 675lb / 1.12klb seven rated capacities for each axis to choose from, each channel is able to measure force in both tension and compression direction. Low profile design makes tri-axial force transducer F3F suitable for 3-axis force measurement applications with limited mounting space.You may find Multi-component force transducer F3F interchangeable with interface 3d force load cell 3A120 series. Typical applications for this type of 3-axis force load cell F3F are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Specifications
| Rated capacity | 200N / 45lb / 20kg 300N / 67lb / 30kg 500N / 112lb / 50kg 1000N / 225lb / 100kg 2000N / 450lb / 200kg 3000N / 675lb / 300kg 5000N / 1.12klb / 500kg |
||
| Rated output | 1.0 mV/V | Compensated temperature | 0...+40oC |
| Excitation | 3-15V | Operating temperature | -10...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.03% R.O./oC |
| Nonlinearity | ±0.3% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.3% R.O. | Input resistance | 700±100 ohms |
| Nonrepeatability | ±0.1% R.O. | Output resistance |
700±100 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Aluminum/Stainless |
| Cable | Ø6*3000mm 12-core shielded cable | ||
| Wiring | 4-wire connection for each axis | ||
3-axis load cell F3F utilizes strain gauge technology, each axis consists of a full wheatstone bridge to deliver mV/V output which is proportional to the force being applied, a 3-channel load cell signal amplifier LC3A can be used to convert mV signal into ±5V, ±10V, 0-5V, 0-10V or 4-20mA for easy signal processing.Taking F3F-5kN and LC3A(-10-10V)-24V for example, it means that -10V corresponds to -5kN while 10V corresponds to +5kN in Fx/Fy/Fz axis.
