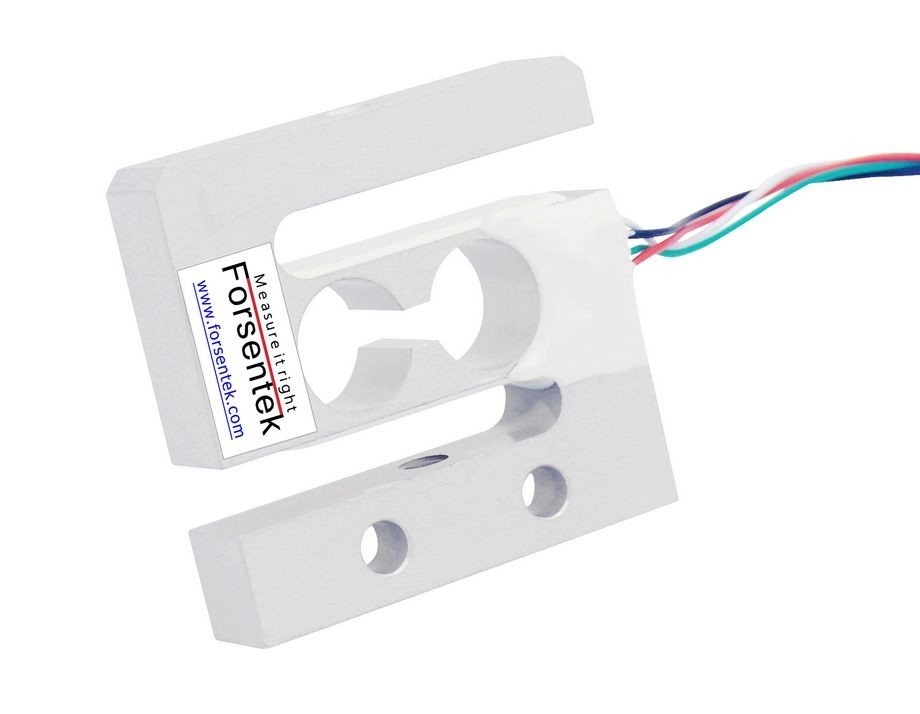

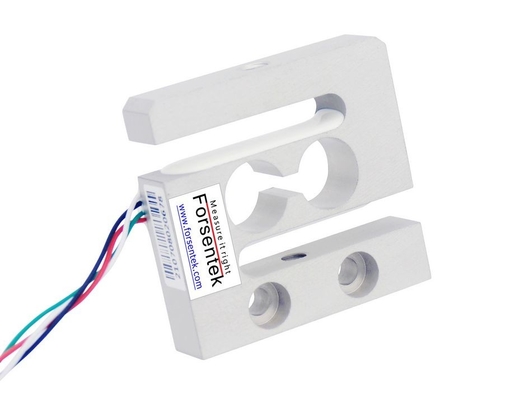

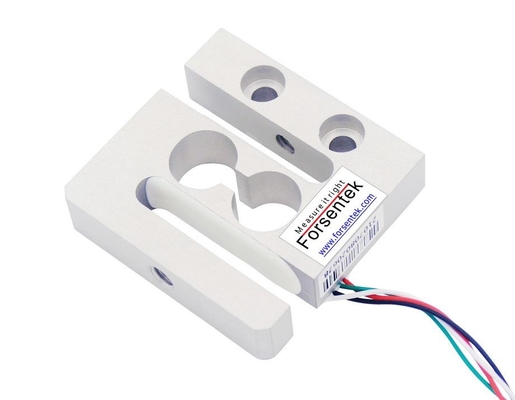

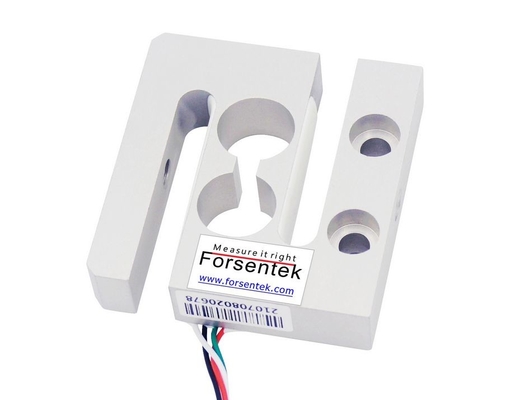

Tension And Compression Load Cell 20N 50N 100N 200N 300N 500N S Type Force Sensor
Universal Tension And Compression Load Cell FS4A is strain gauge based intended for traction and compression force measurement. S Typem Force Sensor FS4A offers 0-20N / 0-50N / 0-100N / 0-200N / 0-300N / 0-500N six rated measuring ranges to choose from. M6 metric threaded holes located on both ends can be used to mount attachments such as eye bolts and hooks for adapt to different cases. S type Compression Traction Load Cell FS4A offers an accurate and affordable measuring solution for applications such as material testing machines, hanging scales, hopper weighing, automation equipment, coefficient of friction testing systems, industrial force control/ feedback, push-pull gauges and so on.
Specifications
| Rated capacity |
20N / 50N / 100N / 200N / 300N / 500N 4.4lb / 10lb / 20lb / 45lb / 66lb / 110lb 2kg / 5kg / 10kg / 20kg / 30kg / 50kg |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.05% R.O./10oC |
| Nonlinearity | ±0.03% R.O. | Temperature shift span | ±0.05% R.O./10oC |
| Hysteresis | ±0.02% R.O. | Input resistance | 400±50 ohms |
| Nonrepeatability | ±0.02% R.O. | Output resistance | 350±5 ohms |
| Creep(30min) | ±0.03% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Aluminum |
| Cable | AWG32*500mm 4-wire | ||
| Wiring code | Compression@ Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||

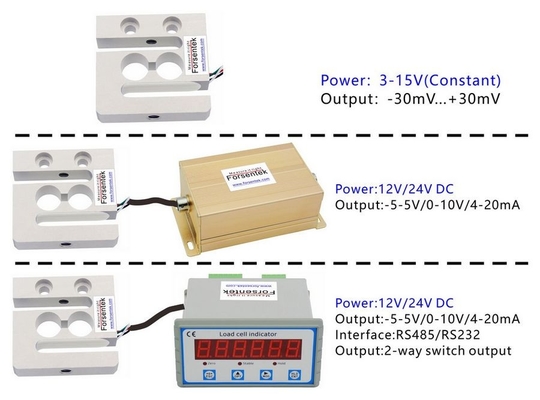

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of S-Type Tension Load Cell FS4A is normally around 2.0mV/V.
Power supply of S-Beam Traction Load cell FS4A is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of S Type Tension Compression Load Cell FS4A is normally within -30mV…+30mV for bidirectional force measurement.
Example one: Universal S Type Load Cell FS4A-30kg with 2.0mV/V sensitivity powered by 5V DC, the output range is -10mV...+10mV.
Example two: M6 Threaded S-beam Load Cell FS4A-2kg with 2.0mV/V rated output powered by 10V DC, the output range is -20mV...+20mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: S-type Tension Compression Load Cell FS4A-10kg working with amplifier FSC(-10-10V)-24V, the Load-Voltage relationship will be 0-10kg compression force VS 0-10V output, 0-10kg traction force VS 0-(-10V), which is linear regardless of the measurement error, 1V output corresponds to 1kg compressive load, (-2V) output corresponds to 2kg traction load, and so on.
Example two: S-beam Tension Compression Sensor FS4A-20kg working with amplifier FSC(4-12-20mA)-24V, the Force-Current relationship will be 0-20kg compressive force VS 12-20mA output, 0-20kg tensile force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 2kg compression load, 8mA output corresponds to 10kg traction load, and so on.
Tension And Compression Load Cell 20N 50N 100N 200N 300N 500N S Type Force Sensor
| Ordering code | Measurement Range | Force direction |
| FS4A-2kg | 0-20N / 0-2kgf |
Traction and Compression |
| FS4A-5kg | 0-50N / 0-5kgf | |
| FS4A-10kg | 0-100N / 0-10kgf | |
| FS4A-20kg | 0-200N / 0-20kgf | |
| FS4A-30kg | 0-300N / 0-30kgf | |
| FS4A-50kg | 0-500N / 0-50kgf |
