| Type: | Miniature Push Pull Load Cell | Capacity: | 1kg 2kg 5kg 10kg 20kg 50kg |
|---|---|---|---|
| Structure: | Jr. S Beam Load Cell | Output: | Analog Sensor |
| Load Direction: | Compression/Traction | Threaded Hole: | M3/M4 |
Miniature Push Pull Load Cell 1kg Micro Compression And Traction Load Cell 2kg

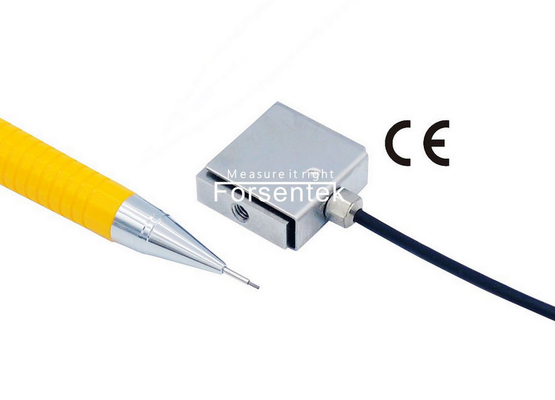

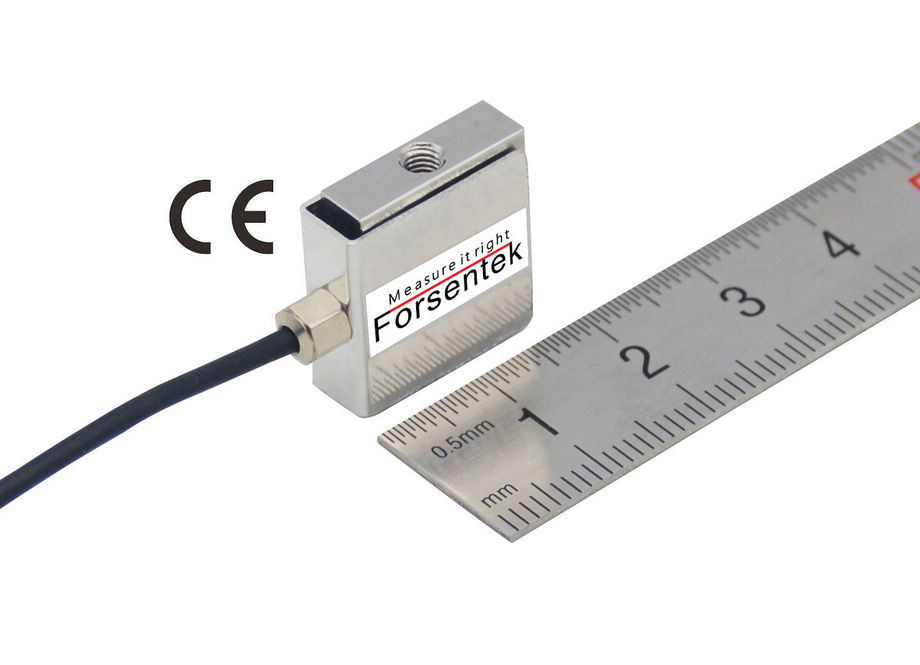

Miniature Push And Pull Load Cell FSSM is made of stainless steel based on strain gauge technology intended for both push and pull force measurement. Micro Push Pull Load Cell FSSM offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg / 0-100kg eight rated measuring ranges to choose from.The Compression Traction Force Load Cell FSSM is a full bridge type transducer delivering 2.0mV/V output with maximum 0.1% non-linearity of the full scale, the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features M4/M3 threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam traction load cell FSSM interchangeable with FUTEK load cell LSB200, Mark Miniature Force Sensors Series R04, flintec s-beam force sensor ISA, flintec load cell ISB,etc.. In addition to the standard specifications, Jr. Load Cell FSSM can also be modified or customized to better fit clients' applications.
A load cell is used to determine mass: The weight force exerted by the sample is converted into an electrical signal by the load cell. Load cells are therefore the most important components of an electronic scale of force measuring&control device. One of the most widely used technologies is based on strain gauge technology: an analog load cell consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the load/weight then can be measured and evaluated by measuring the output signal from the wheatstone bridge.

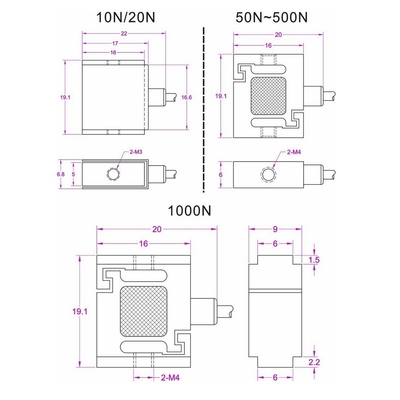

Specifications
| Rated capacity | 10N / 1kg / 2.2lb 20N / 2kg / 4.4lb 50N / 5kg / 10lb 100N / 10kg / 20lb 200N / 20kg / 45lb 300N / 30kg / 67lb 500N / 50kg / 110lb 1kN / 100kg / 220lb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-12V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.03% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 352±5 ohms |
| Creep(5min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | ≤20N IP50 ≥50N IP62 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded | ||
| Wiring code |
Compression@ |
||
The output range of S-Beam Compression And Tension Load Cell FSSM is normally within -30mV...+30mV,
Example one:
Miniature Push Pull Force Transducer FSSM-20N with 2.0mV/V rated output powered by 5V DC, the output range is -10mV...+10mV.
Example two:
Micro Compression Traction Force Sensor FSSM-10N with 2mV/V sensitivity powered by 10V DC, the output range is -20mV...+20mV.
A signal conditioner can be used to convert mV signal into 0-5V / 0-10V / 4-20mA for easy signal processing.
Example one:
Micro Compression And Traction Load Cell FSSM-10N working with amplifier FSC(-10-10V)-24V, the force-voltage relationship will be 0-10N compression force VS 0-10V output, 0-10N tension force VS 0-(-10V) output,which is linear.
Example two:
Miniature Push And Pull Force Sensor FSSM-20N working with amplifier FSC(4-12-20mA)-24V, the force-current relationship will be 0-20N compression force VS 12-20mA output, 0-20N tension force VS 12-4mA output,which is linear.
