Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor

Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor

    • Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor
    • Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor
    • Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor
    • Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor
  • Rod end load cell 20KN 10KN 5KN 3KN 2KN 1KN press load cell sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FC51

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Type: Rod End Load Cell Capacity: 1KN 2KN 3KN 5KN 10KN 20KN
    Output: Analog Load Direction: Tension And Compression
    Connection: M12 Threaded Rod

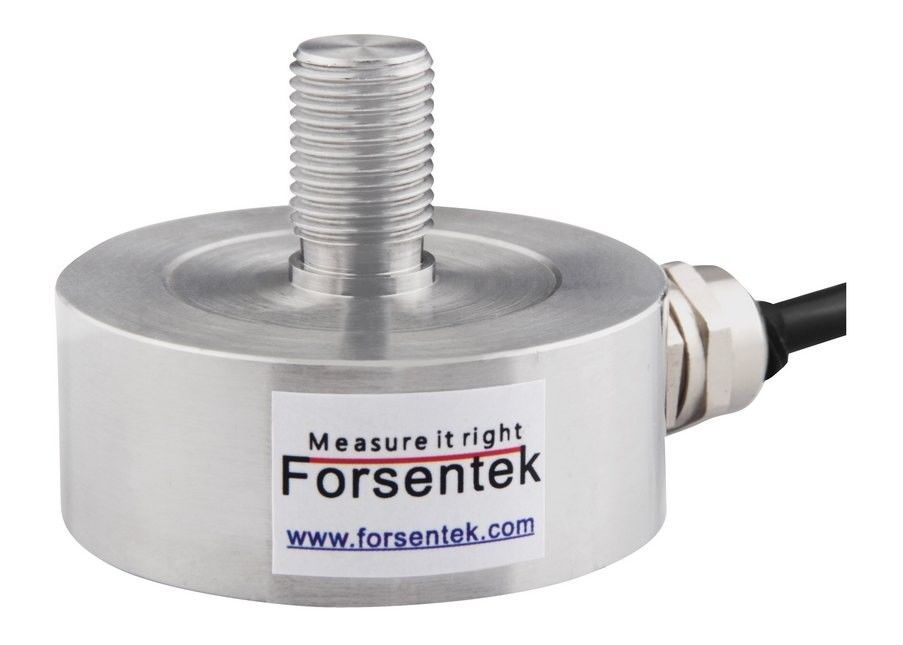

    Rod end load cell press load cell sensor

    rod end load cell

    load cell datasheet
    Features

    • Stainless steel construction
    • Rod end structure,easy to install
    • Strain gauge technology,analog output
    • Compression force measurement for limited space
    • Widely used for force overload protection,pressure distribution measurement,auto equipment,production line,press machine.etc.

    Dimensions(unit in "mm“)
    Rod end load cell FC51

    Specifications

    Rated capacity

    1KN 2KN 5KN 10KN 20KN

    (100kg 200kg 500kg 1000kg 2000kg)

    Rated output 2.0mV/V
    Excitation 3-15V
    Zero balance  ±0.05mV/V.
    Nonlinearity  ±0.3% of R.O.
    Hysteresis  ±0.3% of R.O.
    Nonrepeatability  ±0.1% of R.O.
    Creep(30min)  ±0.1% of R.O.
    Safe overload  150% of F.S.
    Ultimate overload  200% of F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.02% R.O./oC
    Temperature shift span  ±0.02% R.O./oC
    Input resistance 780±30 ohms
    Output resistance 700±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP66
    Material of element  Stainless steel
    Cable  Ø4*4000mm 4-core shielded
    Wiring code

     Red--Excitation+   Black--Excitation-
     Green--Signal+ White--Signal-


    A rod end load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

    load cell 4-20mA

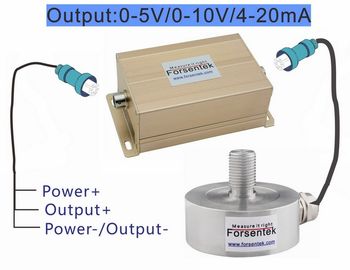

    Rod end load cell FC51 outputs millivolt signal ranging 0-20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get 0-5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.

    force sensor indicator

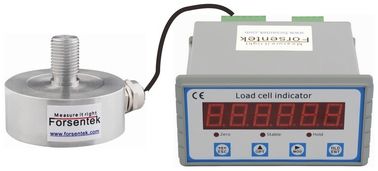

    The applied force can be displayed through a force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
