Name: Miniature button load cell 100kg 50k 20kg 10kg 5kg Miniature force sensor
Brand: Force sensor torque transducer
SKU: FC15A
Availability: InStock

Home Products Micro load cell

Miniature button load cell 100kg 50k 20kg 10kg 5kg Miniature force sensor

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Certification:	CE
Model Number:	FC15A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	3-20 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Type:	Micro Button Load Cell	Capacity:	5kg 10kg 20kg 30kg 50kg 100kg
Output:	Analog	Usage:	Compression Force Measurement

Miniature button load cell Miniature force sensor

Features

Stainless steel construction

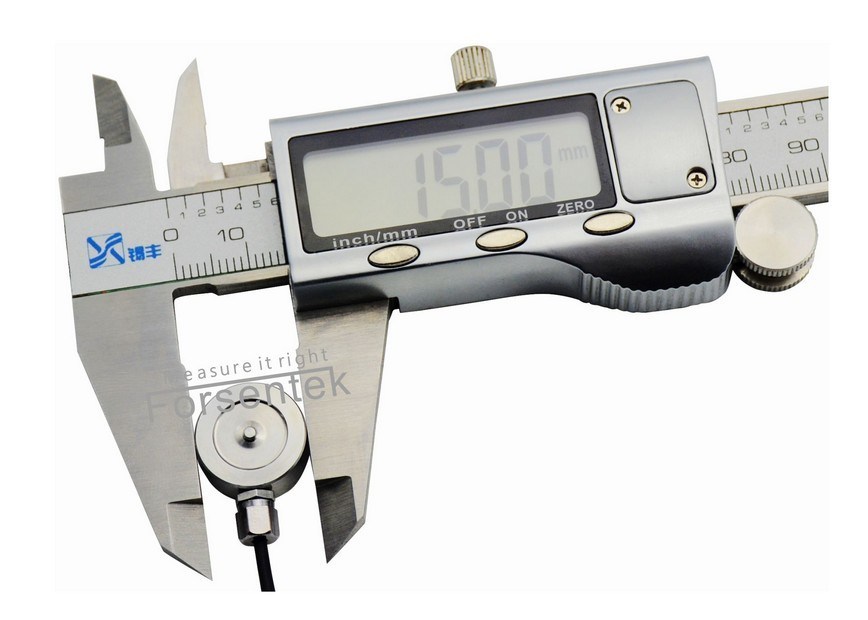

Miniature size with 15mm outer diameter
High output resistance,low heat emmision
Compression force measurement

Application

Clamping force measurement
Force overload protection
Load distribution measurement
Pressing die force measurement
Auto equipment
Medical divices
Assembly line

Miniature button load cell 100kg 50k 20kg 10kg 5kg Miniature force sensor
Specifications

Capacity	5kg 10kg 20kg 30kg 50kg 100kg
Rated output	1.0mV/V
Excitation	3-10V
Zero balance	±0.1mV/V
Non-linearity	±1% R.O.
Hysteresis	±1% R.O.
Non-repeatability	±0.3% R.O.
Creep(5min)	±0.3% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temp.	-10...+40^oC
Operating temp.	-20...+60^oC
Temp. shift zero	±0.05% R.O./^oC
Temp. shift span	±0.05% R.O./^oC
Input resistance	>700 ohms
Output resistance	>700 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Ordering Code:
FC15A-5kg FC15A-10kg FC15A-20kg
FC15A-30kg FC15A-50kg FC15A-100kg

Dimensions(unit in "mm")
Miniature button load cell 100kg 50k 20kg 10kg 5kg Miniature force sensor
Click here to download datasheet
