Type: | Micro Load Cell | Structure: | Single Ended Beam Type |
---|---|---|---|
Usage: | Load Measurement | Capacity: | 2kg 3kg 5kg 10kg |
Output: | Analog Transducer | Length: | 22mm |
Micro Weight Sensor 10kg 5kg 3kg 2kg Miniature Loadcell Transducer

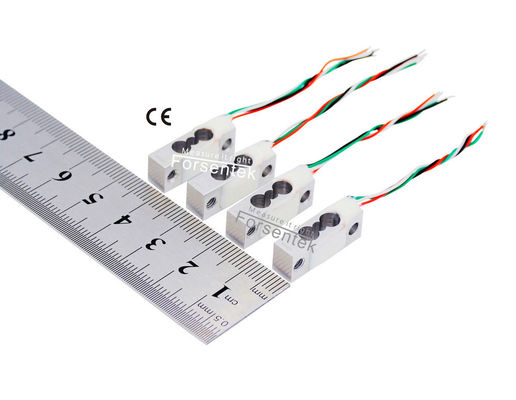

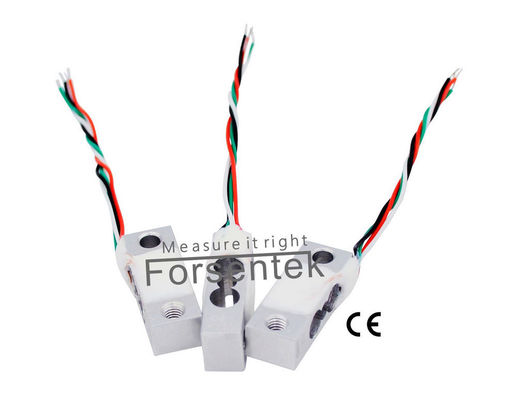

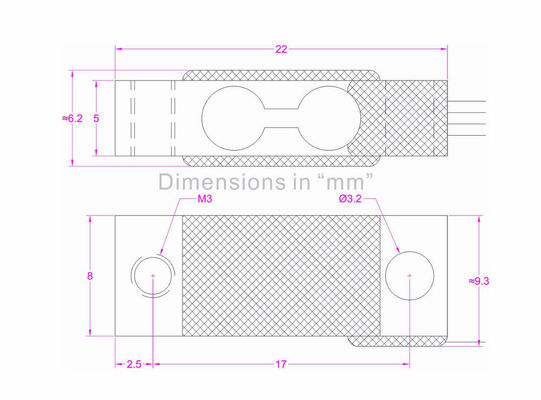

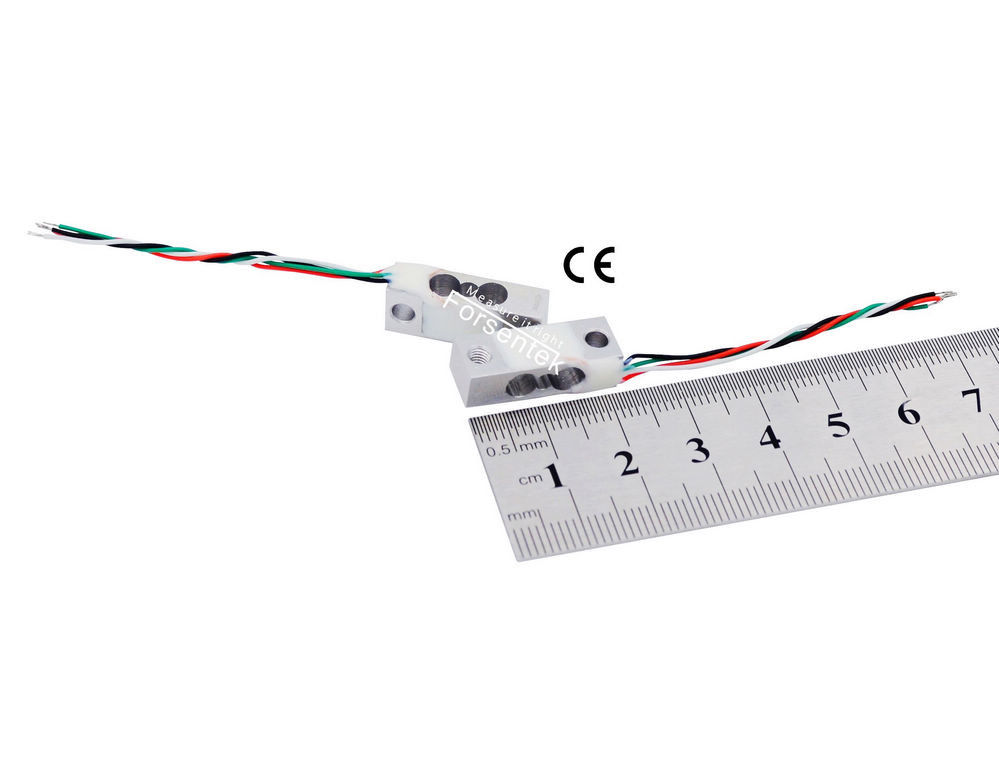

Micro Load Cell FMZC is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Miniature Load Sensor FMZC offers 0-2kg / 0-3kg / 0-5kg / 0-10kg four rated measuring ranges to choose from,high accuracy with maximum 0.1% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to commonly used 350 ohms gauges. The compact size (L*W*H=22*8*5mm) and aluminum material makes loadcell FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass and mounting space matters. Micro load cell FMZC offers a perfect mixture of small size,high accuracy and low cost,which makes mini weight sensor FMZC suitable for weight monitoring in consumer electronics.You may find weight transducer FMZC applicable for home appliances, force simulators, process control, robotics, automotive and so on.Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement sensors from the standard product portfolio.
Specifications
Rated capacity |
2kg / 20N / 4.4lb 3kg / 30N / 6.6lb 5kg / 50N / 11lb 10kg / 100N / 22lb |
||
Rated output | 1.0 mV/V | Compensated temperature | -10...+40oC |
Excitation | 3-10V | Operating temperature | -20...+60oC |
Zero balance | ±0.1mV/V | Temperature shift zero | ±0.05% R.O./oC |
Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.05% R.O./oC |
Hysteresis | ±0.1% R.O. | Input resistance | 1020±100 ohms |
Nonrepeatability | ±0.05% R.O. | Output resistance | 1020±20 ohms |
Creep(2min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
Safe overload | 120% F.S. | Ingress protection | IP62 |
Ultimate overload | 200% F.S. | Material of element | Aluminum |
Cable | AWG32*180mm(Longer cable upon request) | ||
Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured forming a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of micro load cell FMZC is normally around 1mV/V.
Power supply of miniature weight sensor FMZC is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of small load sensor FMZC is normally within -10mV...+10mV.
Example one: Micro loadcell FMZC-10kg with 1.0mV/V sensitivity powered by 10V DC,the output range is -10mV...+10mV.
Example two: Miniature loadcell FMZC-5kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.
