Structure: | Single Ended Beam Type | Output: | Analog |
---|---|---|---|
Type: | Miniature Load Cell | Usage: | Weight Measurement |
Length: | 35mm |

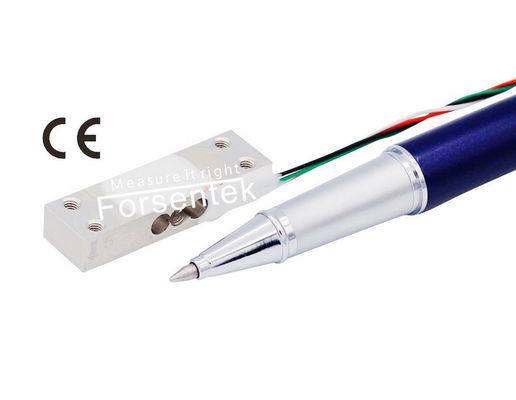

Micro Loadcell Transducer 10kg 5kg 3kg 2kg 1kg Miniature Weight Sensor
Miniature Weight Sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.Micro load cell transducer FMZK is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load transducer FMZK offers 0-0.5kg / 0-1kg / 0-2kg / 0-3kg / 0-5kg / 0-6kg / 0-10kg seven rated measuring ranges to choose from,high accuracy with maximum 0.05% non-linearity of the full capacity.The 1000ohms resistance strain gauges used are more energy-efficient compared to common 350ohms gauges.The compact size and aluminum construction makes FMZK weighs only about 5.3 grams which makes it suitable for portable weighing devices.Small size weight sensor FMZK offers a perfect mixture of small size,high accuracy and low cost,which makes loadcell FMZK suitable for weight monitoring in consumer electronics.You may find load sensor FMZK applicable for home appliances, force simulators, process control, robotics, etc..
Specifications
Rated capacity |
0.5kg / 5N / 1.1lb 1kg / 10N / 2.2lb 2kg / 20N / 4.4lb 3kg / 30N / 6.6lb 5kg / 50N / 11lb 6kg / 60N / 13.2lb 10kg / 100N / 22lb Customizable |
||
Sensitivity | 1.0 mV/V | Compensated temperature | 0...+40oC |
Excitation | 3-10V | Operating temperature | -10...+60oC |
Zero balance | ±0.1mV/V | Temperature shift zero | ±0.03% R.O./oC |
Nonlinearity | ±0.05% R.O. | Temperature shift span | ±0.02% R.O./oC |
Hysteresis | ±0.05% R.O. | Input resistance | 1000±50 ohms |
Nonrepeatability | ±0.05% R.O. | Output resistance | 1000±10 ohms |
Creep(3min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
Safe overload | 120% F.S. | Ingress protection | IP62 |
Ultimate overload | 200% F.S. | Material of element | Aluminum |
Cable | AWG32*170mm(Longer cable upon request) | ||
Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured forming a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Small load cell FMZK-5kg with 1.0mV/V sensitivity(also called rated output) powered by 10V DC,the output range is 0~10mV.
Example two: Miniature weight sensor FMZK-10kg with 1.0mV/V sensitivity(also called rated output) powered by 3.3V DC,the output range is 0~3.3mV.
