| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FCCK |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2320pcs/month |
| Type: | Miniature Button Load Cell | Capacity: | 50N 100N 200N 500N 1000N |
|---|---|---|---|
| Output: | Analog | Usage: | Compression Force Measurement |
| Diameter: | 12.7mm | Height: | 4mm |
Miniature Compression Force Transducer 1kN 500N 200N 100N 50N Micro Force Sensor

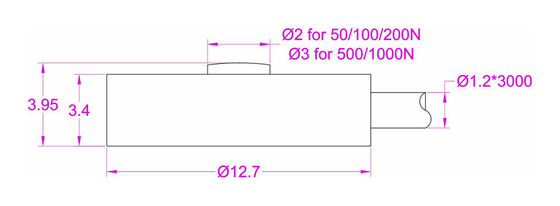

Miniature Compression Force Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes Thin Loadcell FCCK suitable for compression force measurement applications with limited mounting space. Low Profile Compression Load Cell FCCK offers 0-1kN / 0-500N / 0-200N / 0-100N / 0-50N five rated measuring ranges to choose from. Micro Load Sensor FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Subminiature Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc..Custom made service is available for similar structures with different measuring ranges.
Specifications
| Rated capacity |
50N / 5kg / 11lb |
||
| Rated output | 1.5 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-12V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.05% R.O./oC |
| Nonlinearity | ±2% R.O. | Temperature shift span | ±0.05% R.O./oC |
| Hysteresis | ±2% R.O. | Input resistance | 1000±100 ohms |
| Nonrepeatability | ±0.5% R.O. | Output resistance | 1000±100 ohms |
| Creep(3min) | ±0.5% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP64 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø1.2*3000mm 4-core cable | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FCCK-100N with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.
Example two: FCCK-200N with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.
Load cell + Signal amplifier:
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Thin load cell FCCK-50N working with amplifier FSC(0-5V)-24V,the load-voltage relationship will be 0-50N load VS 0-5V output.
Example two: Miniature load cell FCCK-1kN working with amplifier FSC(4-20mA)-24V,the load-current relationship will be 0-1000N load VS 4-20mA output.
