|Type:||Micro Load Cell||Capacity:||0-50kg(Selectable)|
|Output:||Analog||Usage:||Compression Force Measurement|
Miniature Compression Transducer 5kg 10kg 20kg 50kg Micro Loadcell Sensor

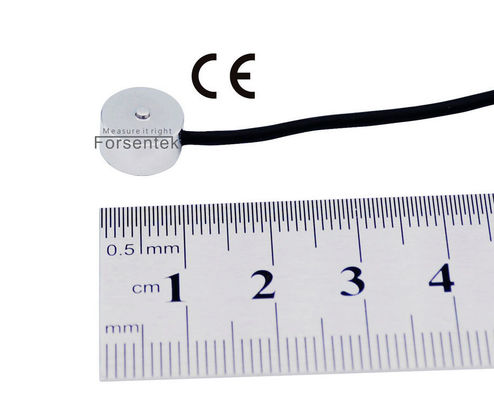

Subminiature Compression Sensor FC10C is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement. Subminiature button load cell FC10C offers 0-5kg / 0-10kg / 0-20kg / 0-50kg four rated measuring ranges to choose from. Micro compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications where mounting space is limited. Typical applications for smallest compression load cell FC10C are such as clamping force measurement, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on. Load transducer FC10C can also be modified or customized as per requirements of our clients.
5kg / 50N / 11lb
10kg / 100N / 22lb
20kg / 200N / 44lb
50kg / 500N / 110lb
|Rated output||1.0 mV/V||Compensated temperature||-10...+40oC|
|Zero balance||±0.1mV/V||Temperature shift zero||±0.05% R.O./oC|
|Nonlinearity||±1% R.O.||Temperature shift span||±0.05% R.O./oC|
|Hysteresis||±1% R.O.||Input resistance||900±100 ohms|
|Nonrepeatability||±0.5% R.O.||Output resistance||900±100 ohms|
|Creep(5min)||±0.5% R.O.||Insulation resistance||>2000Mohms|
|Safe overload||150% F.S.||Ingress protection||IP65|
|Ultimate overload||200% F.S.||Material of element||Stainless steel|
|Cable||Ø2*4000mm 4-core shielded cable|
Red--Power input+ Black--Power input-
Green--Signal output+ White--Signal output-
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Subminiature Button Load Cell FC10C-20kg with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.
Example two: Micro Compression Sensor FC10C-50kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Smallest Button Load Cell FC10C-10kg working with amplifier FSC(0-5V)-24V,the load-voltage relationship will be 0-10kg compressive load VS 0-5V output.
Example two: Miniature Compression Transducer FC10C-5kg working with amplifier FSC(4-20mA)-24V,the load-current relationship will be 0-5kg compressive force VS 4-20mA output.
