| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FC60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Quote by email |
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 4130pcs/month |
| Usage: | Compression Force Measurement | Capacity: | 0-30 Ton (Selectable) |
|---|---|---|---|
| Output: | Analog | Type: | Button Type Load Cell |

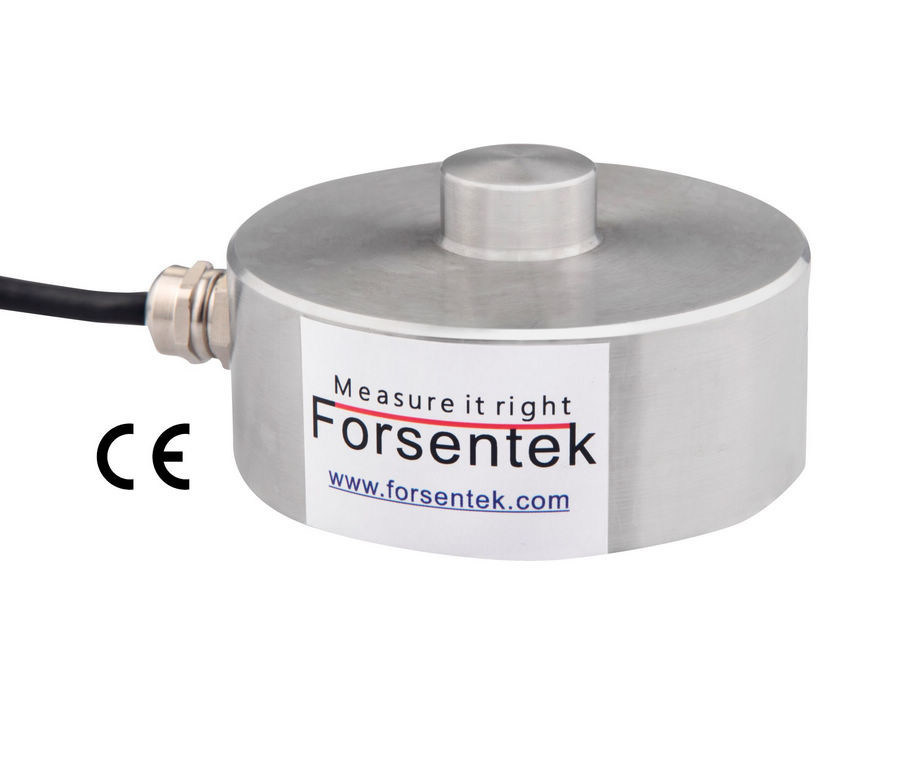

Compression Type Load Cell 30 ton 25 ton 20ton 10ton 5ton 2ton 1 ton 500kg
Stainless Steel Compression Load Cell FC60 is made of stainless steel based on foil strain gauge technology to deliver 2.0mV/V rated output intended for press force measurement. Button Type Compression Force Transducer FC60 offers 0-300kg / 0-500kg / 0-1000kg / 0-2000kg / 0-3000kg / 0-5000kg / 0-10 ton / 0-15ton / 0-20 ton / 0-25 ton / 0-30ton eleven rated measuring ranges with maximum 0.3% non-linearity of the full capacity to choose from intended for both static and dynamic force measurement, you may find compression force sensor FC60 suitable for force monitoring & control in injection-molding machines, press machines, load distribution analysis, and so on. Loadcell FC60 can also be modified or customized as per request of our clients.
Specifications
| Rated capacity |
300kg / 3kN / 660lb 500kg / 5kN / 1.1klb 1 ton / 10kN / 2.2klb 2ton / 20kN / 4.4k lb 3 ton / 30kN / 6.6 klb 5ton / 50kN / 11 klb 10ton / 100kN / 22klb 15ton / 150kN / 33klb 20ton / 200kN / 44klb 25ton / 250kN / 55klb 30ton / 300kN / 66klb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 5-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.05% R.O./10oC |
| Nonlinearity |
±0.3% R.O. |
Temperature shift span | ±0.05% R.O./10oC |
| Hysteresis |
±0.3% R.O. |
Input resistance | 380±30 ohms |
| Nonrepeatability |
±0.1% R.O. |
Output resistance | 350±5 ohms |
| Creep(30min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP66 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable | ||
| Wiring code |
Red--Powert+ Black--Power- Green--Output+ White--Output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.The output range of compression load sensor FC60 is normally within 0...+30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards. For example: Compression Transducer FC60-10t working with amplifier FSC(0-10V)-24V, the load-output relationship will be 0-10000kg compression load VS 0-10V output. Weight indicator can be used to display the measured value, load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC, sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
