|Place of Origin:||China|
|Minimum Order Quantity:||1pc|
|Price:||Quote by email|
|Packaging Details:||Shockproof carton|
|Delivery Time:||3-25 working days|
|Payment Terms:||T/T, Western Union, MoneyGram,Paypal|
|Material:||Stainless Steel||Type:||Flange Mounted Load Cell|
|Output:||Analog||Usage:||Compression Force Measurement|
|Structure:||Flange To Flange||Capacity:||0-5000kN (Selectable)|

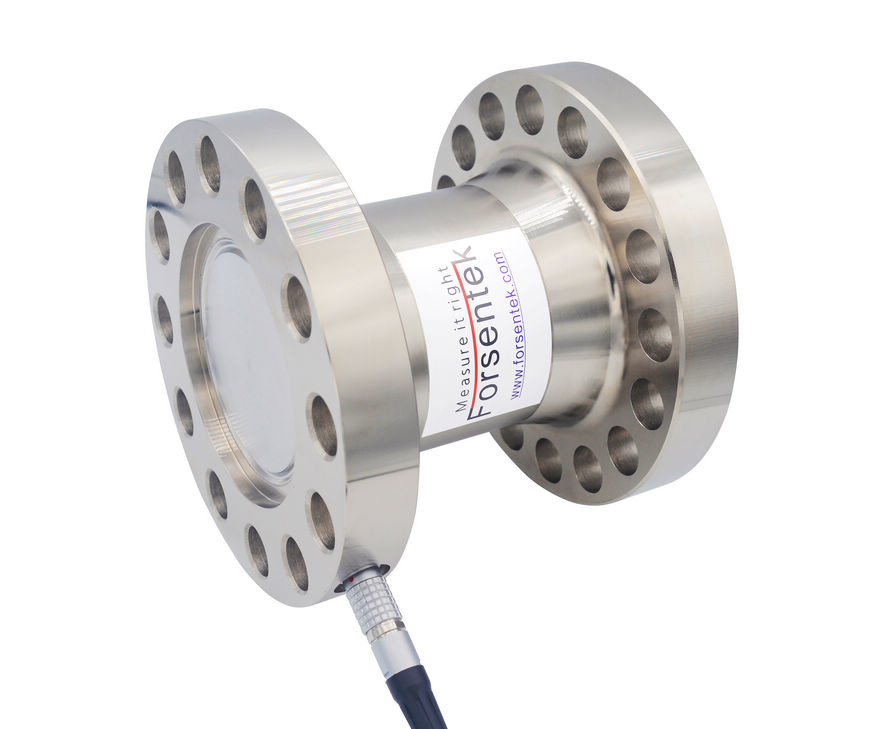

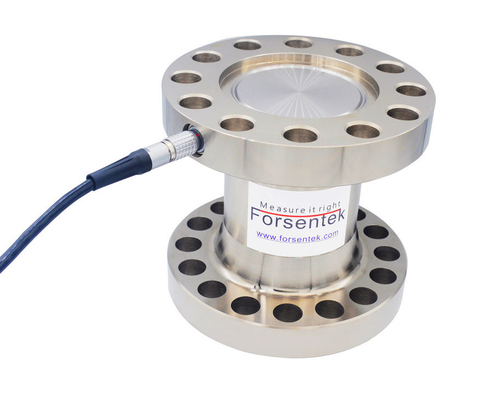

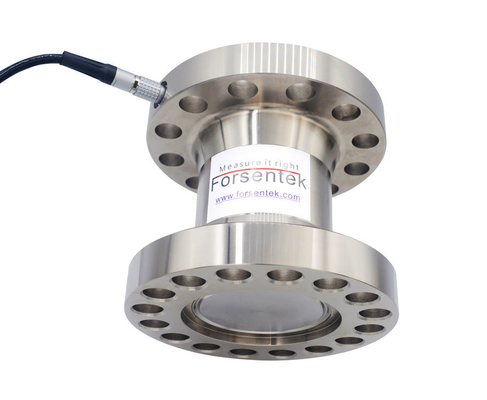

Flange Mounted Compression Load Cell 1000kN Column Type Force Sensor 2000kN
High Range Flange-to-flange Compression Load Cell FCRF is made of alloy steel based on strain gauge technology adopting a column design that has a flange-to-flange mount for easy installation. Column Type Compression Force Sensor FCRF offers 0-300kN / 0-500kN / 0-600kN / 0-1000kN / 0-1500kN / 0-2000kN / 0-2500KN / 0-3000kN / 0-4000kN / 0-5000kN ten rated measuring ranges to choose from. You may find Compression Force Transducer FCRF applicable for pile load test, bridge load monitoring, injection molding machines, structure testing, rolling mills and so on.

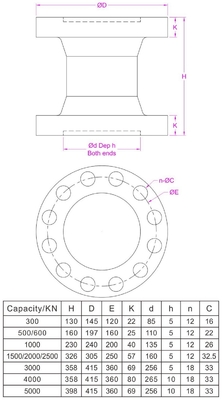

Dimensions(Unit in "mm")
300kN / 30 ton
500kN / 50ton
600kN / 60ton
1000kN / 100ton
1500kN / 150ton
2000kN / 200ton
2500kN / 250ton
3000kN / 300ton
4000kN / 400ton
5000kN / 500ton
|Rated output||2.0 mV/V|
|Safe overload||120% F.S.|
|Ultimate overload||150% F.S.|
|Temperature shift zero||±0.02% R.O./oC|
|Temperature shift span||±0.02% R.O./oC|
|Input resistance||780±50 ohms|
|Output resistance||750±50 ohms|
|Insulation resistance||>5000M ohms|
|Material of element||Alloy steel|
|Cable||Ø5*5000mm 4-core shielded|
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer which is normaly within -30mV...+30mV.A signal amplifier can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for further signal processing. Load cell zero output(Zero Balance):The output signal of the loadcell with no-load applied,expressed in mV/V or as a percentage of rated output.The zero output is caused by the stress during strain gauge bonding,it can be handled during calibration or signal processing without affecting the measurement accuracy.Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of column load cell FCRF is around 2.0mV/V.
Power supply of cylinder load cell FCRF is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of compression load cell FCRF is normally within 0-30mV.
Example one: Compression force sensor FCRF-1000kN with 2.0mV/V rated output power by 5V DC,the output range is 0~10mV.
Example two: Compression force transducer FCRF-2000kN with 2.0mV/V rated output power by 10V DC,the output range is 0~20mV.
Flange Mounted Compression Load Cell 1000kN Column Type Force Transducer 2000kN
