| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FCFK |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1975pcs/month |
| Type: | Miniature Compression Load Cell | Capacity: | 2.2lb 4.5lb 11lb 22lb 45lb |
|---|---|---|---|
| Usage: | Compression Force Measurement | Output: | Analog Sensor |
| Mounting: | Flanged Surface |

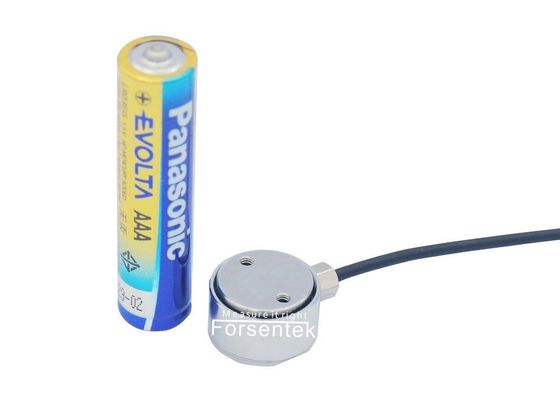

Miniature Compression Load Cell 2lb 5lb 10lb 20lb Compression Force Transducer
Miniature Compression Force Sensor FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Micro Compression Load Cell FCFK offers 0-2.2lb / 0-4.5lb / 0-11lb / 0-22lb / 0-45lb five rated measuring ranges to choose from, flange to flange mounting,compact design, you may find micro compression sensor FCFK applicable for compression force measurement applications where mounting space is limited, such as mold clamping force measurement, assembly force monitoring, force distribution test,etc..Model FCFK can also be modified or customized as per client's request.
Specifications
| Rated capacity |
2.2lb / 4.5lb / 11lb / 22lb / 45lb 1kg / 2kg / 5kg / 10kg / 20kg |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.03% R.O./oC |
| Nonlinearity | ±0.3% R.O. | Temperature shift span | ±0.03% R.O./oC |
| Hysteresis | ±0.3% R.O. | Input resistance | 385±50 ohms |
| Nonrepeatability | ±0.1% R.O. | Output resistance | 350±50 ohms |
| Creep(3min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP50 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Output signal of load cell FCFK:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Flange Load Cell FCFK is normally around 2.0mV/V.
Power supply of Thrust Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Transducer FCFK is normally within 0…+30mV.
Example one: Miniature Column Load Cell FCFK-100N with 2.0V/V sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Miniature Flanged Load Cell FCFK-200N with 2.0mV/V rated output powered by 10V DC,the output range is -0mV...+20mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.
Example one: Micro Compression Load Cell FCFK-10lb working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10lb compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1lb compression load, 2V output corresponds to 2lb compression load, and so on.
Example two: Miniature Thrust Force Load Cell FCFK-20lb working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-20lb compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 2lb thrust force, 12mA output corresponds to 10lbf thrust force, and so on.
Miniature Compression Force Load Cell FCFK can also work with digital indicator FPT to deliver below functions:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output
Miniature Compression Load Cell FCFK
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb | |
| FCFK-50N | 0-50N / 0-0-10lb | |
| FCFK-100N | 0-100N / 0-20lb | |
| FCFK-200N | 0-200N / 0-45lb |
